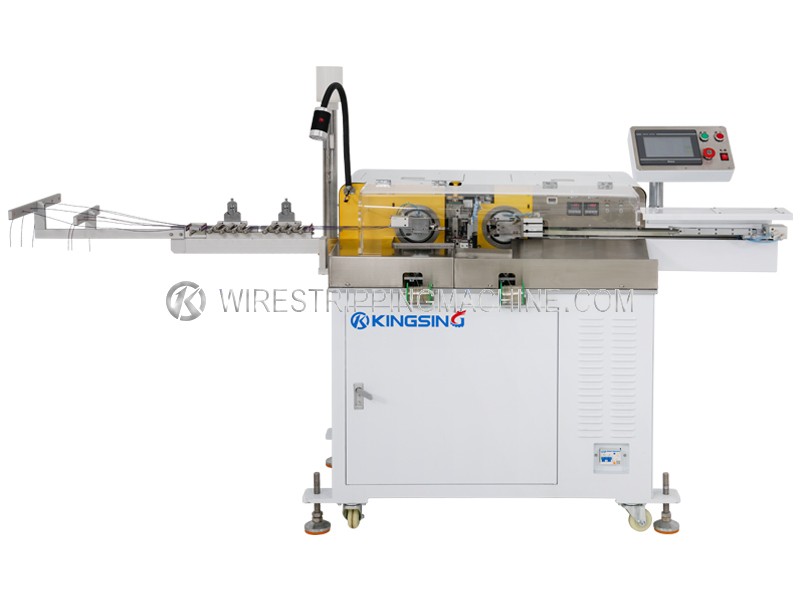

Excellent price/performance ratio;
Support full stripping, half stripping, middle stripping and twisting;
With a production capacity of 7000-12000 pcs/hour, it can process 8 wires at the same time;
Color LCD touch screen operation interface, the parameters are intuitive and easy to understand;
Equipped with MITSUBISH servo motors and SMC pneumatic cylinders, so the wire cutting, stripping, twisting, tin soldering and flux dipping positions can be precisely controlled;
The solder wire can be fed into the solder pot automatically, and the soldering smoke eater can take out the tin smoke in time to ensure the working environment is good for operators' health.
Suitable Wire Range:AWG32~AWG20(can be customized)
Cutting Length:10~600mm(shortest 8mm)
Cutting Accuracy:0.2±0.002×L(L means the cutting length)
Stripping Length:0~7mm
Twisting Length:3~14mm(optional twisting device is required)
Tinning Length:0.5~7mm
Capacity:7000~12000 pcs/hour(depends on the wire material)
Machine Power:2.5KW
Detection Function:Air pressure, lack of wire, lack of tin, motor abnormal, etc.
Program Storage:Max. 48 sets
Air Supply:0.5~0.7Mpa
Power Supply:AC220V 50Hz/60Hz(single phase)
Dimension(LxWxH):1210*770*1370mm
Net Weight:400Kg
Note：
The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.
Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
