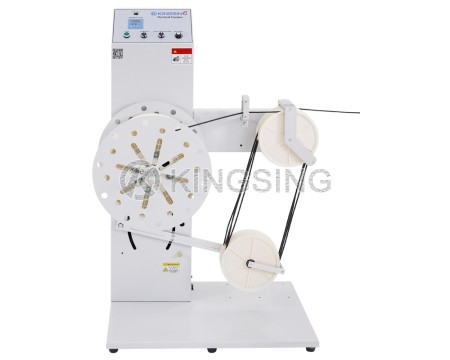

Five Station Wire Spool Prefeeding Machine

  • Model：KS-W225
  • Net. Weight：
  • Dimension：
Online Inquiry

The Five Station Wire Spool Prefeeding Machine KS-W225 feeds the wire gently and continuously tothe active wire storage, while the intake of the fully automatic wire harness processing machine takes the wire out of the storage in order to further processing, the wire is led under constant tension for trouble-free feeding.

It features 5 wire feeding reels which driven by 5 independent motors, each of the 5 reels can work individually, the moveable dancer pulley allows the prefeeder to easily respond to the typical intermittent starting and stopping actions associated with automatic wire processing machines.

Download: (1) (2)

Scope of Application: wire reel or loose coil

Available Wire Diameter: Φ0.5~4mm

Ribbon Cable Max. Width: 25mm

Wire Spool Diameter: Max. 350mm

Wire Spool Width: Max. 250mm

Wire Spool Weight: Max. 20Kg

Wire Feeding Speed:1~3m/s

Storage Capacity: about 1m

Power Supply: 220V 50/60Hz

Net. Weight: 130Kg

Dimensions: 900×800×1250mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
