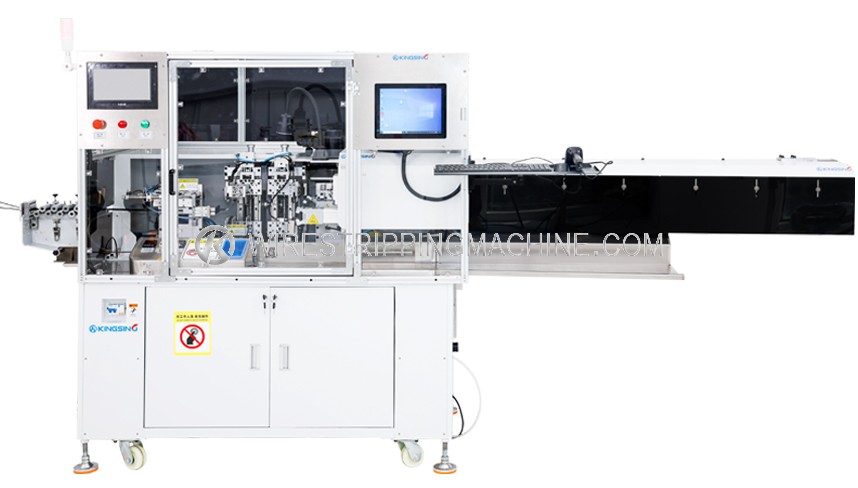

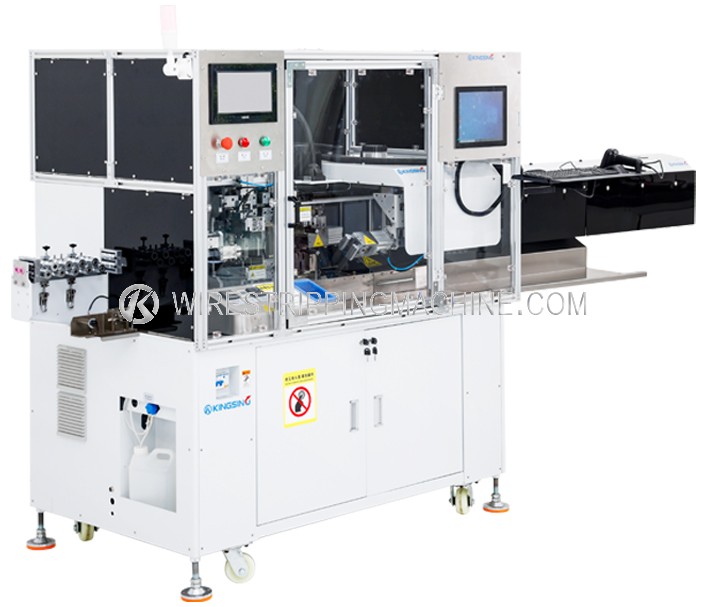

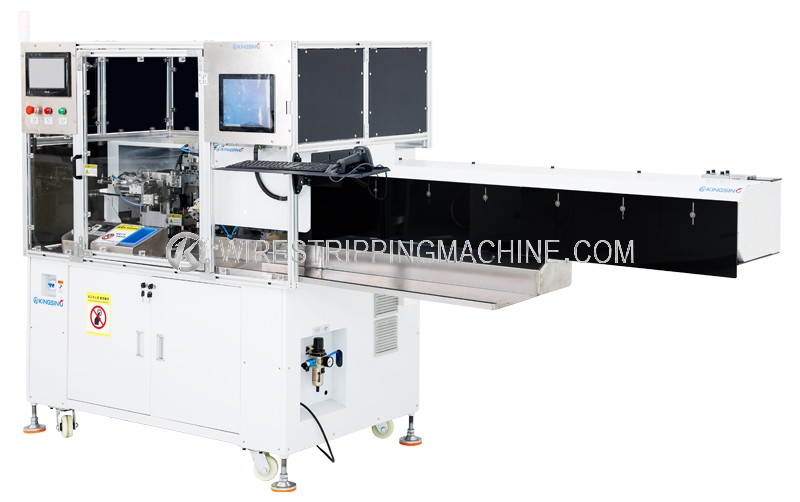

Multi-core Cable Cutting Stripping & Tinning Machine

  • Model：KS-W580
  • Net. Weight：
  • Dimension：
Online Inquiry

  1. This is a full-servo multi-core round sheath wire double-sided stripping and tinning machine. It integrates the functions of cutting wire, stripping outer sheath, stripping core wire, twisting wire, tinning and other functions, and can automatically complete double-sided twisting and tinning. This machine adopts the wire rod to feed the wire. The cutting precision is high, and the cutting length can be customized according to the demand. The standard machine has a maximum cutting length of 1.5 meters, and a model with a maximum cutting length of 20 meters can be customized.

  2. PLC and color touch screen control system, the whole machine is precise in workmanship, and the moving parts are driven by 12 sets of servo motors with strong power. It supports simultaneous processing of multiple wires, and can process 5 wires at the same time for sheathed wires with an outer diameter of less than 6mm, greatly improving production efficiency. The unique tin-dipping structure can ensure that the core wires will not stick together when dipped in tin.

Download: (1) (2) (3)

Applicable wire: multi-core sheathed wire, rubber wire, PVC wire, silicone wire

Applicable wire diameter: ≤Φ8mm

Cutting length: 120~1500mm (up to 20 meters long can be customized)

Cutting accuracy: ±1mm (10 meters long error is ±2mm)

Outer sheath stripping length: wire head ≤ 55mm, wire tail ≤ 190mm

Core wire stripping length: wire head ≤ 22mm, wire tail ≤ 18mm

Wire cutting capacity: 5 wires can be processed at the same time within an outer diameter of 6mm

Production efficiency: 2000 pieces/hour (cutting line length 500mm)

Control system: PLC and 10-inch color touch screen

Motor type: 12 sets of servo motors (bus)

Working voltage: 220V 50/60Hz

Rated power: 3500W

Net weight: 380kg

Dimensions: 3900*850*1650mm

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
