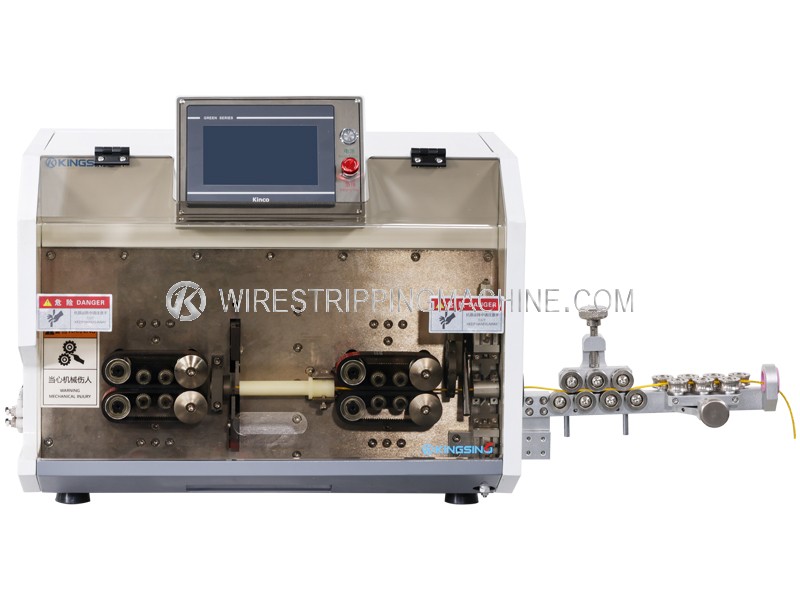

This series of wire stripping machines includes 8 sub-models (see technical parameters for details). The belt feeding is used to replace the traditional roller feeding, which greatly increases the contact area with the wire. While increasing the tension and enhancing the stripping ability, it can also reduce the pressure and reduce the damage to the surface of the wire sheath, and there is no indentation on the surface of the wire sheath. The blade holder is driven by a high-precision servo motor, which is fast and powerful.
The upper and lower sets of wire feeding wheels are driven by positive and negative screw rods, which can be opened and closed at the same time. When processing wires of different thicknesses, the position of the center line of the wires can always be kept unchanged, and the wires are always aligned with the center of the blade opening, which can effectively prevent the stripping opening from tilting. The pressure of the wire feeding wheel can be set directly in the program, no need to manually adjust the screw, it is very convenient to switch between different wire diameters.
This machine also has the function of automatic lifting wheel and jump guide. The automatic lifting wheel means that the outlet wheel can be automatically opened for avoidance when stripping the wire head, and the jump guide function means that the wire inlet guide is automatically lifted for avoidance when the end of the wire is stripped, which greatly increases the stripping length range.
The program memory function can store the processing parameters of different wires into different program numbers, and the corresponding program can be called out with one key when processing the wire again. One machine can complete the processing of various wires, which is very versatile.
Support non-standard customization, we have strong research and development capabilities, and can customize special functions according to customer needs. Common optional features include:
Customized blades and conduits with special shapes are used to process flat sheathed wires, double wires, flat wires and other wires. Flat sheathed wires can be stripped from the inner and outer layers.
A splitting fixture can be added to realize automatic cutting and stripping of the cable and splitting at both ends, and supports two splitting modes: cutting and stamping;
A scribing jig can be added. For wires with a long peeling length and a tight sheath, the scribing jig can be used to split the wire sheath on both sides to reduce the stripping resistance.
Add inkjet printers, wire number hot stamping machines and other equipment to realize coding while stripping wires.
Install the wire-taking manipulator and conveyor belt to ensure that the wire is put into the receiving tray straight and neatly when processing long wires.
Optional computer industrial control system (Windows operation interface), supports MES system and document import, remote order dispatch, automatic coding, etc.
| Model | Applicable core area | Hardware Configuration | Features |
|---|---|---|---|
KS-W0310 （10 square double wire type） | 1.0 ~ 10.0mm² AWG18~7 | blade holder servo | It can strip two 10mm² wires at the same time, and the speed is fast |
KS-W3016 （16 square high-speed type） | 1.0 ~ 16.0mm² AWG18~5 | blade holder servo | Single-wire high-speed type, fast |
KS-W030 （30 square thick wire type） | 1.0 ~ 30.0mm² AWG18~2 | blade holder servo | Standard thick wire type, the maximum can be processed 30mm² wire |
KS-W030S （30 square high-end type） | 1.0 ~ 30.0mm² AWG18~2 | blade holder servo Feed servo | Cutter motor and feeding wheel motor both adopt servo motor |
KS-W030A （The manipulator takes the wire） | 1.0 ~ 30.0mm² AWG18~2 | blade holder servo | Built-in take-up manipulator, easy to increase the receiving conveyor belt |
KS-W030M （Stripping and scoring type） | 1.0 ~ 30.0mm² AWG18~2 | blade holder servo | Equipped with middle stripping and scribing device, supporting middle window stripping |
KS-W030T （50mm² middle stripping and scribing） | 1.0~50mm² AWG18~1/0 | blade holder servo | High-power medium stripping and scribing, supporting middle window stripping |
KS-W0305 （50mm² heavy duty） | 1.0~50mm² AWG18~1/0 | blade holder servo | Larger function, can process 50mm² wire at most |
Full stripping length range: wire head 0~120mm, wire tail 0~80mm
Maximum half-stripped length: wire head 100mm, wire tail 350mm (according to wire material)
Maximum cutting length: 1000m (longer can be customized)
Operation interface: 7-inch color touch screen
Machine Appearance: Multiple options (same function, but different appearance)
Program saving: up to 100 groups of programs can be stored
Cutting accuracy: 0.002*L (L refers to the cutting length)
Working voltage: 220V 50Hz
Rated power: 1000W
Net weight: 90~100kg
Dimensions: 845*540*625mm

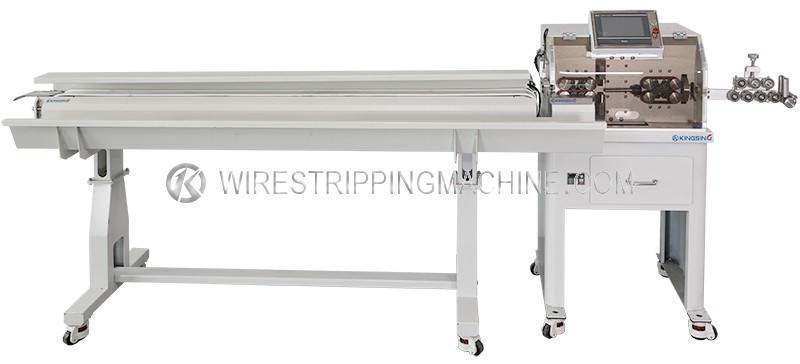

The effect diagram of installing the automatic take-up conveyor belt is as follows:
Note：
The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.
Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
